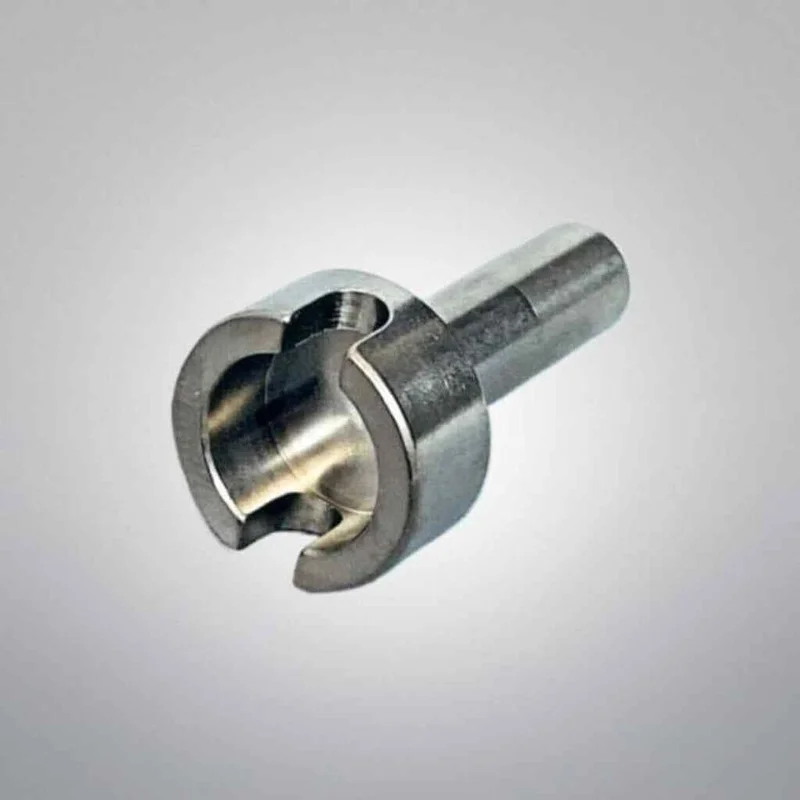

VICI Valco Manual Actuator Valve Assembly Drive Shaft 4 Units

Description

VICI Valco Manual Actuator Drive Shaft Assembly – Precision Chromatography Valve Alignment Component, High-Torque Transmission, Anti-Backlash Drivetrain (MPN: Actuator Drive Shaft Series)

The VICI Valco Manual Actuator Valve Assembly Drive Shaft is an instrument-grade mechanical transmission component designed to transmit rotational torque directly from the manual handle to the inner polymer rotor of Valco gas chromatography (GC) and high-performance liquid chromatography (HPLC) switching valves. Operating as the structural backbone of the manual actuator assembly, this precision-machined shaft ensures crisp, positive indexing between valve positions (such as switching from a sample “Load” loop to an inline “Inject” path). Fabricated from hardened, high-purity stainless steel alloys, the drive shaft is engineered with tight mechanical tolerances to completely eliminate rotational backlash and axial play. By maintaining absolute concentric alignment inside the actuator housing, it ensures uniform pressure distribution against the valve body, preventing localized rotor wear, port misalignment, and systemic chromatographic pressure drops.

Technical Performance and Design

• Anti-Backlash Torque Transmission: Precision-molded end keys mate flawlessly with Valco manual handle couplings and valve rotor slots. This tight friction interface provides immediate, 1:1 rotational feedback without mechanical lag, ensuring precise sample loop loading.

• Hardened Stainless Steel Composition: Machined from premium, passivated stainless steel alloy. This material matrix withstands millions of heavy manual switching cycles and resists structural twisting, deformation, and atmospheric cleanroom moisture corrosion.

• Concentric Alignment Stabilization: Engineered with a highly polished cylindrical bearing surface that rotates smoothly within the manual actuator’s internal bushings, eliminating spindle wobble that can score delicate internal valve components.

• Direct Retrofit Compatibility: Standardized physical dimensions allow for tool-free, slot-in replacement during standard actuator block rebuilds, allowing technicians to restore factory switching tension without buying a completely new system chassis.

Product Specifications

• Component Designation: Manual Actuator Valve Assembly Drive Shaft

• Manufacturer / Brand: VICI Valco Instruments Co. Inc.

• System Compatibility Matrix: Tailored for Valco standard manual actuators, multi-position selectors, and two-position switching valves (GC, HPLC, and SF6 configuration families)

• Material Composition: Premium Hardened Passivated Stainless Steel

• Interface Geometry: Standardized slotted/keyed drive pin connection tips

• Operational Domain: Analytical High-Pressure Gas and Liquid Chromatography Instrumentation

Key Benefits and Applications

• Chromatography Flow-Path Precision: Secures exact alignment between internal micro-channels, ensuring the mobile phase lines up perfectly with the analytical column to preserve sharp peak integrations.

• Eliminated Dead-Volume Anomalies: Absolute rotational positioning prevents the valve from stopping mid-port, avoiding split retention times, sample carryover tailing, and system pressure spikes.

• High-Temperature Oven Endurance: Safely operates adjacent to high-temperature gas chromatography oven manifolds without expanding or warping, maintaining precise manual injection metrics throughout intense thermal ramps.

• Low-Maintenance Mechanical Life: The smooth, low-friction shaft walls minimize internal wear on surrounding actuator housings, extending maintenance intervals for critical benchtop testing stations.

All product names, logos, and brands are property of their respective owners.
