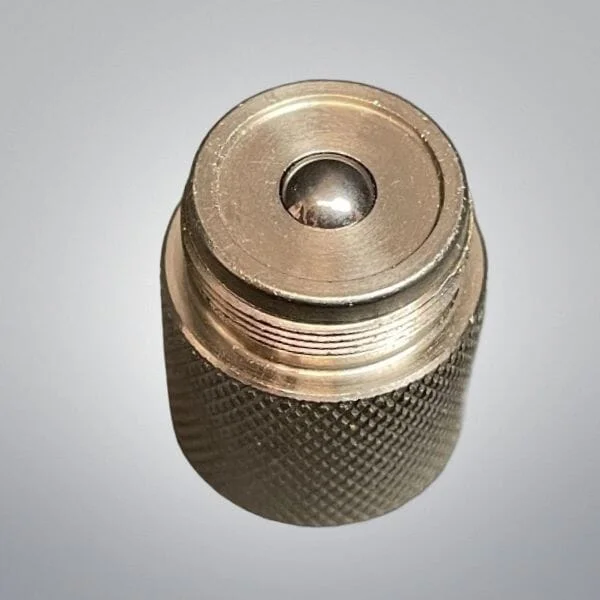

VICI Valco Manual Actuator Preload Assembly

Description

VICI Valco Manual Actuator Preload Assembly – High-Performance Chromatography Valve Tension Module, Self-Aligning Rotor Housing, Zero-Shift Mechanical Force (MPN: Preload Assembly Series)

The VICI Valco Manual Actuator Preload Assembly is a specialized, instrument-grade mechanical component designed to regulate, maintain, and secure structural sealing tension across Valco gas chromatography (GC) and high-performance liquid chromatography (HPLC) injection and switching valves. Engineered as part of the core manual actuator drivetrain, the preload assembly holds the inner polymer rotor flush against the polished, conical interior of the stainless steel or titanium valve body. This specialized sub-assembly permits field technicians to replace worn rotors or conduct internal line flushes without disconnecting fluid loops, unseating column lines, or disengaging the primary valve body from its manual actuator handle or standoff mounting bracket. By automatically applying precise, factory-calibrated spring tension, it ensures zero dead-volume fluid fluidics, defends against localized gaseous leakage, and stabilizes systemic multi-port switching pressures.

Technical Performance and Design

• Factory-Set Mechanical Tension Control: Engineered with an internal coil spring or balanced washer configuration that applies exact, uniform linear compression against the rotor shaft, eliminating manual over-tightening hazards that cause premature rotor shear wear.

• Inline Rotor Servicing Optimization: Eliminates the labor-intensive teardown steps traditional to legacy liquid injectors. Unscrewing the preload assembly provides immediate access to internal sealing rings without disturbing pre-swaged capillary tubing loops.

• Anti-Corrosive Metal Matrix Longevity: Fabricated from high-purity, passivated alloys designed to withstand intense mechanical switching forces, high oven baking cycles, and routine exposure to aggressive organic HPLC solvents or GC carrier gas trails.

• Integrated External Wrench Flats: Feature parallel, precision-cut hex wrench flat profiles on the outer casing perimeter, providing a safe, slip-free grip point for standard hand wrenches during maintenance or analytical recalibrations.

Product Specifications

• Component Designation: Manual Actuator Valve Preload Assembly

• Manufacturer / Brand: VICI Valco Instruments Co. Inc.

• System Compatibility Matrix: Tailored for Valco standard manual actuators, multi-position selectors, and two-position switching valves (GC and HPLC configurations)

• Material Composition: Heavy-Duty Passivated Stainless Steel Alloy / Industrial Polymers

• Mechanical Interface: Precision threaded seal shaft engagement with parallel wrench flats

• Sterility / Process State: Non-Sterile Analytical Component (Ultrasonically cleaned and prepared for high-vacuum implementation)

Key Benefits and Applications

• Chromatography System Pressure Locking: Acts as the vital tension lock that holds multi-port internal fluid channels leak-free under extreme chemical analytical system backpressures.

• Eliminated Dead-Volume Leak Paths: Continuous spring compensation stops localized thermal expansion or contraction gaps from forming during high-temperature oven ramping programs.

• Rapid Core Routine Maintenance: Facilitates rapid field diagnostics, enabling quick extraction of the rotor core using a pencil-type magnet to inspect for chemical scratching or salt buildup.

• Preserved Peak Shape Integration: Ensures precise internal alignment to maintain clean fluidic transitions, eliminating sample carryover, peak tailing, and split retention times on high-sensitivity mass spectrometers.

All product names, logos, and brands are property of their respective owners.
