Description
Product Information

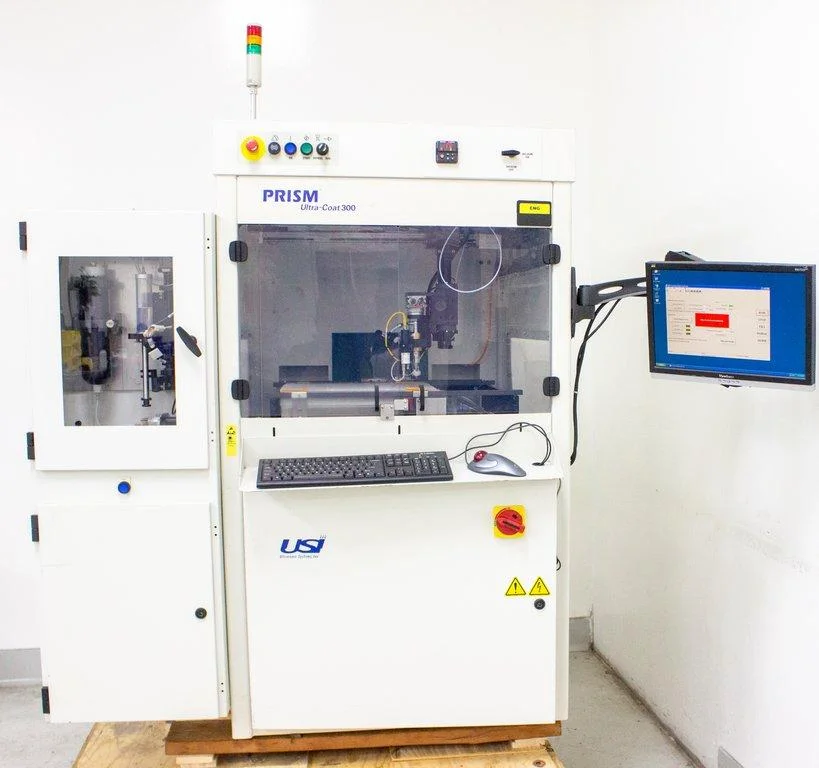

The USI Prism Ultra-Coat 300 Coating System is designed for applying conformal coatings to printed circuit boards and other products. This unit is in fair condition with minor errors or cosmetic defects but retains high potential value due to its advanced coating capabilities. The system features three axes of motion driven by servo motors, and it can be configured with up to two different ultrasonic spray heads. Despite a communication issue preventing software connectivity, the system, which includes a computer, supports USI’s Thin Coating Application Technology for defect-free applications across industries such as electronics and medical devices.
Technician comment
USI Prism Ultra-Coat 300 Coating System powers on but communications failed, Unable to communicate with software.
Key Features
- Three-axis motion control
- Ultra-Thin Coating Application Technology (T-CAT)
- Dual ultrasonic spray head compatibility
- Heavy duty welded steel frame
- Ethernet-based motion controls
Specifications
- Brand/Manufacturer: USI
- Model: Prism Ultra-Coat 300 Coating System
- Sub-Model: P300-1-250
- Condition: Fair
- Power Requirements: 220V, 50Hz/60Hz
- Control System: Windows based GUI
- Motor: Servo-driven ball screw actuator for Z-axis
- Spray Head Types: ILDS Head and Blade Head
- Coating System: X-Y-Z-Ɵ-Φ gantry system
- Liquid Delivery: Precision metering pump (PMP)
Weight
Imperial: 1080.0 Pounds
Metric: 489.88 Kilograms
Shipping Dimensions
Imperial: 58.8 lb x 66.0 lb x 76.8 lb
Metric: 149.35 cm x 167.64 cm x 195.07 cm
Harmonized Code
847989
Harmonized Code Details
847989 – Machines and mechanical appliances having individual functions. Used for coating electronic components, this code is applicable for machinery used in the production of electrical circuits or boards.
