Description
Product Information

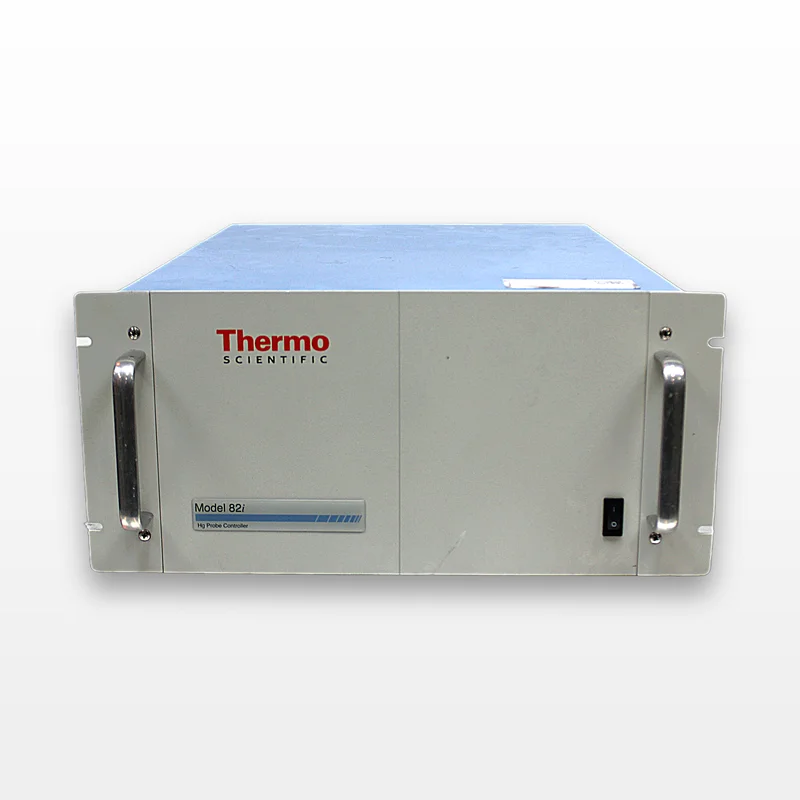

The Thermo Scientific Model 82i Mercury Probe Controller is a key component of the Mercury Freedom System, designed to manage mercury monitoring in exhaust stacks from coal-fired boilers and waste incinerators. This G (Good) condition unit powers on and performs basic tests, with no known functionality issues despite showing cosmetic wear. This microprocessor-driven controller automates probe calibration, dynamic spiking, and confirms auto dilution, while monitoring and regulating pressure and temperature. It features an iSeries platform for enhanced communications, easy serviceability, and remote access via Ethernet. Notably, it automates stinger and filter blowback, eliminating the need for added probe power at the stack. Specifications include operation within 41°F to 44°F, power requirements of 220V-240V/50Hz-60Hz, along with air requirements of 10 lpm zero air and 4 CFM dry air.
Key Features
- Microprocessor-driven automation
- Automates probe calibration and dynamic spiking
- Automated stinger and filter blowback
- Monitors temperature, flow rates, and pressure
- iSeries gas analyzer platform
- Ethernet connectivity for remote access
Specifications
- Operating temperature: 41° to 44°F (5° to 40°C)
- Power requirements: 220V-240V, 50Hz/60Hz
- Air requirements: 10 lpm zero air, 4 CFM dry air
- Microprocessor-driven automation
- Supports U.S. EPA 40CFR Parts 60 and 75 compliance
- Easy access for service with slide-apart modules
- Weight: 49 lbs / 22.2 kg
- Dimensions: 16.75″ (W) × 8.62″ (H) × 23″ (D)
Weight
Imperial: 52.8 Pounds
Metric: 23.95 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 22.8 lb x 12.0 lb
Metric: 73.15 cm x 57.91 cm x 30.48 cm
Harmonized Code
903180
Harmonized Code Details
903180 – Measuring or checking instruments, appliances and machines, n.e.s. Appropriate for the Model 82i as it is an instrument controller used in measuring and checking processes.
