Pall Depth Filter Capsule SUPRACAP 50 Single Layer Media Grade Luer Connections

Description

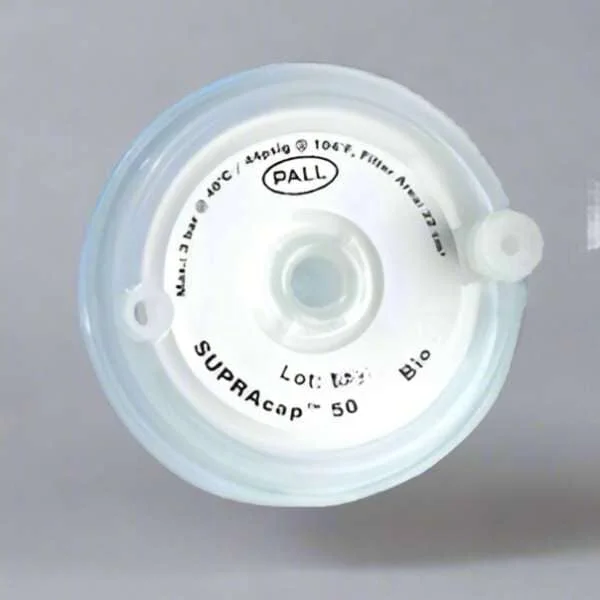

Pall SC050V100 Supracap 50 Depth Filter – V100 Single-Layer Media, 22 cm2

The Pall SC050V100 is a specialized Supracap 50 depth filter capsule designed for laboratory clarification, process development, and small-volume bioprocessing. Featuring Seitz V100 single-layer depth media, this capsule is engineered for effective coarse to medium-grade filtration, capturing bulk particulates and cellular debris from biological feedstreams. Produced from high-purity cellulose and inorganic filter aids, the V100 media provides a reliable barrier for primary clarification steps, protecting downstream membranes and chromatography columns from premature fouling. The compact, fully encapsulated design ensures a closed system, minimizing hold-up volume and maximizing sample recovery in critical R&D workflows.

Technical Performance and Design

• Seitz V100 Single-Layer Media: Optimized for coarse clarification, the V100 grade provides a consistent matrix for the removal of large cellular aggregates, yeast, and large-particle contaminants.

• High Volumetric Throughput: The single-layer depth architecture is designed to maintain high flow rates and low pressure drop, making it ideal for the initial cleanup of high-turbidity batches.

• Adsorptive Retention: The filter matrix exhibits an electropositive charge that enhances the removal of sub-micron contaminants and negatively charged impurities through adsorptive sequestration.

• Integrated Luer Lock Connections: Equipped with standardized luer lock inlet and outlet ports for a secure, tool-free connection to syringes, laboratory manifolds, and small-scale peristaltic pumps.

Product Specifications

• Catalog Number: SC050V100

• Filter Media: Seitz V100 (Single-Layer Cellulose/Inorganic)

• Nominal Retention: Coarse/Medium Clarification

• Filtration Area: 22 cm2

• Connections: Luer Lock (Inlet/Outlet)

• Materials: Polypropylene housing with cellulose-based depth media and charged resin.

• Sterility: Non-Sterile (Autoclavable)

Key Benefits & Applications

• Primary Clarification: The industry-standard choice for the initial harvesting of cell culture supernatants and fermentation broths in biopharmaceutical research.

• Reagent & Buffer Cleanup: Excellent for clarifying complex buffers or reagents that contain components prone to plugging finer sterilizing-grade filters.

• Closed System Operation: The self-contained capsule design prevents the release of aerosols and ensures aseptic integrity, protecting both the operator and the sample.

• Linear Scalability: Part of the Supracap family, providing predictable performance that allows for seamless scale-up to larger Supracap 100, 200, and Stax production modules.
