Description
Product Information

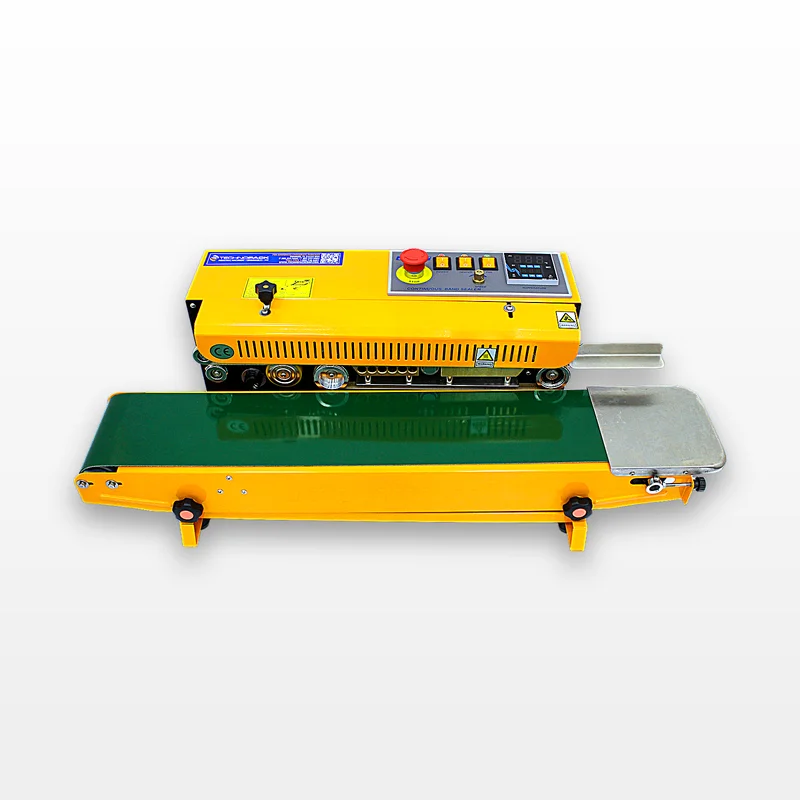

The JORESTECH Continuous Band Sealer E-CBS-630D is a versatile unit that allows precise control of heat-sealing temperature via a digital panel. Tested to specifications and performing as intended, this semi-automatic sealer operates efficiently with thermoplastic materials such as Polyethylene (PE), Polypropylene (PP), and heat-sealable laminations including Bo PET. Ideal for sealing a variety of bag formats like stand-up pouches, gusseted, and pillow-type bags, the unit offers both horizontal and vertical orientations for adaptable use. The sealer supports a dual fit system and achieves speeds up to 54 ft/min, creating strong, professional airtight seals reminiscent of high-speed automatic systems. With a PID temperature controller and motorized belt conveyor, the E-CBS-630D ensures synchronized speed and a seamless sealing process. Measuring 15L x 34W x 11H inches (38 x 86.4 x 28 cm), the unit can handle bag heights from 4.9 to 11 inches.
Key Features
- Precise digital temperature control
- Convertible horizontal and vertical operation
- Seals thermoplastic materials: PE, PP, Bo PET
- PID controller with temperature range 0 – 300°C
- High-speed sealing up to 54 ft/min
- Motorized belt conveyor with synchronized speed adjustment
Specifications
- Operation: Semi-Automatic
- Power Type: Constant Heat
- Seal Head Orientation: Dual Fit System (Vertical & Horizontal)
- Seal Width: 10 mm / 3/8 in
- Compatible Bag Formats: Pillow, Pouch, Sack, Open Mouth, Stand-up, Doy pack, Gusseted, Multi-Ply, Flat Bottom
- Recommended Bag Height (Vertical Machines): 125 – 280 mm / 4.9 – 11 in
- Max Bag Seal Speed: 54 ft/min (16 mt/min)
- Voltage: 120V, Hertz: 50/60Hz
Weight
Imperial: 58.8 Pounds
Metric: 26.67 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 40.8 lb x 13.2 lb
Metric: 45.72 cm x 103.63 cm x 33.53 cm
Harmonized Code
842240
Harmonized Code Details
Harmonized code 842240 refers to machinery for packing or wrapping, and the JORESTECH E-CBS-630D sealer fits this category as a device designed for sealing plastic bags and packaging materials efficiently.
