Description
Product Information

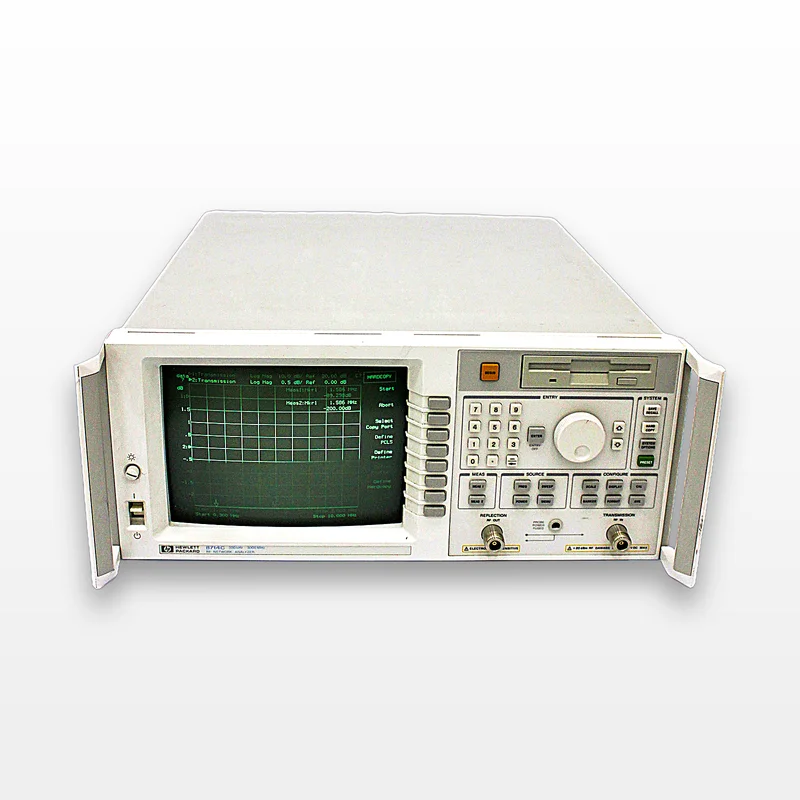

The Hewlett Packard 8714C is a reliable used RF Network Analyzer tailored for precision in production measurements of transmission and reflection parameters across a 300 kHz to 3 GHz frequency range. This compact system integrates an RF synthesized source, transmission/reflection test set, and dual-mode receivers, offering greater than 100 dB system dynamic range for superior measurement accuracy. It features a built-in transmission/reflection test set capable of measuring magnitude and phase in various formats, including complex impedance, SWR, and delay. The unit, which functions as intended, shows minor cosmetic wear typical of normal utilization. The device operates on 120V and supports both narrowband and broadband detection. Please note that a power cord is included, but other accessories like computer and software are not. Manufactured in the United States, this analyzer is tested and affirmed for operational confidence.
Key Features
- Frequency Range: 300 kHz to 3 GHz
- Dual-mode receivers with >100 dB dynamic range
- Integrated transmission/reflection test set
- Narrowband and broadband detection capabilities
- Digital signal processing for fast measurement throughput
- Test Port Connector: Type N Female (50 Ohm)
Specifications
- Integrated transmission/reflection test set and synthesized source
- Narrowband and broadband detection
- 100 dB of system dynamic range
- Connectivity Interface Type: GPIB
- Directivity: 40dB
- Maximum Input: 23dBm
- Input Impedance: 50 Ohm
- Display: Digital Monochrome
- Test Port Connector Type: Type N Female (50 Ohm)
Weight
Imperial: 61.2 Pounds
Metric: 27.76 Kilograms
Shipping Dimensions
Imperial: 26.4 lb x 21.6 lb x 9.6 lb
Metric: 67.06 cm x 54.86 cm x 24.38 cm
Harmonized Code
9030.33.00
Harmonized Code Details
9030.33.00 – Instruments and apparatus for measuring or checking voltage, current, resistance or power, without a recording device; other instruments and apparatus, for telecommunications. Chosen due to the 8714C’s function as a network analyzer in electronics and telecommunications applications.
